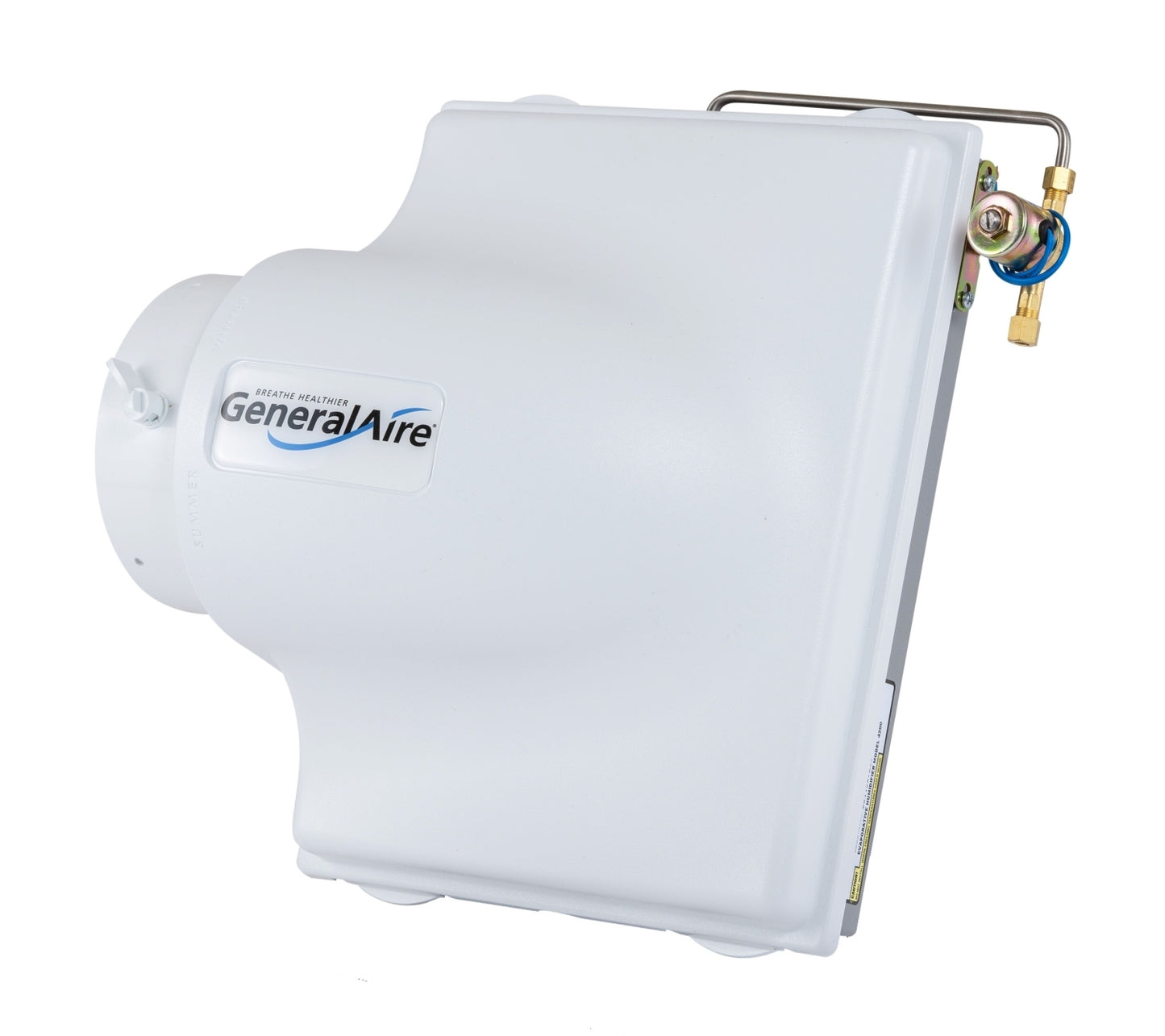

GeneralAire 4200M - Whole House Evaporative Humidifier, Manual, GFI # 5950

A whole-house humidifier can be a great addition to your home. Maintaining the right humidity level in your home keeps you feeling more comfortable at a lower set temperature, helps to preserve the structural integrity of your home, including that of wood floors, cabinets, and furniture, and has many health benefits including the reduction of allergy and asthma symptoms, as well as the reduced likelihood of respiratory infections.

The GeneralAire 4200M is a Whole House evaporative humidifier that uses evaporative humidification to circulate humidity throughout your home.

The GeneralAire 4200M is capable of producing up to 17 gallons per day, and accommodates up to 4200 square feet. The MHX3C Humidistat supports only manual humidity control, so the user must control humidity levels by hand.

What's in the box?

• Generalaire 4200M
• MHX3C Manual Humidistat
• Control Bypass Damper.
• 24V Transformer.
• Solenoid Valve.
• GA35 Vapor Pad®
• Saddle Valve (GCV3412 Code Valve - A Models)
• Installation Manual

Specs

• Type:  bypass evaporative
• Gallons per day:  17 (based on 120° F plenum temperature)
• Dimensions (inches):  15 1/4 H x 12 W x 8 1/2 D
• Weight (pounds):  3.5
• Vapor Pad® replacement:  GeneralAire GA35 (GFI #7902)
  • Replace 1-2 times per season
• For home sizes up to 4,200 square feet
• Plenum opening (inches):  9 1/8 W x 12 H
• Bypass opening (inches):  6
• Pallet quantity (units):  30
• Installation:  warm air / return air plenum / right of left side
• Control:  MHX3C manual-control duct-or-wall mount humidistat
• Power (volts):  24
• Left or right bypass installation option
• Left or right solenoid valve installation option
