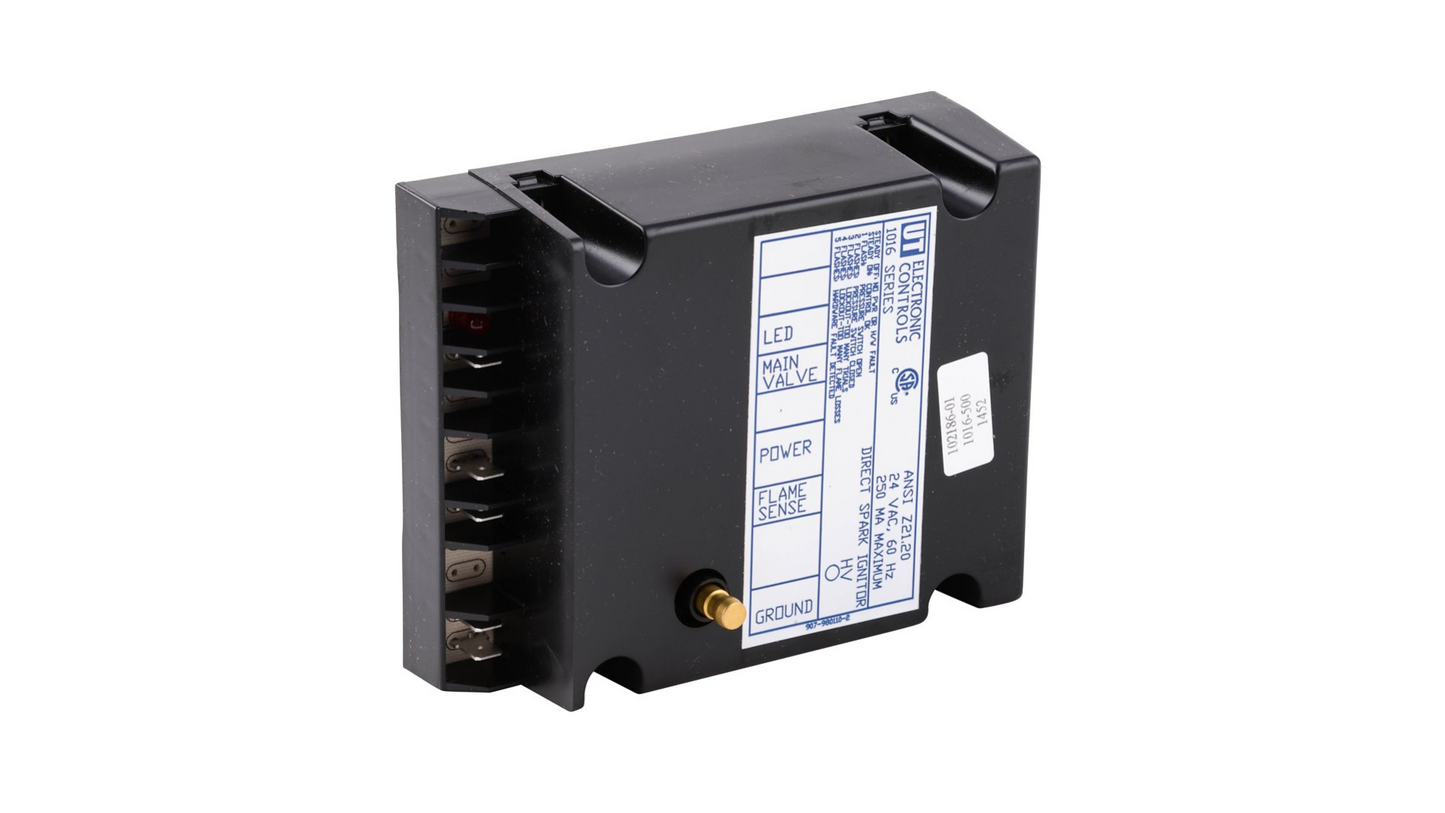

Lennox 49W66 - UT Electronic Controls 102186-02 - Direct Spark Ignition Control, 24 Volts

Direct Spark Ignition Control

• UTEC Model: 1016-500
• Pre-Purge: 30 sec nom
• Trial for Ignition: 8 sec
• Ignition Trials: 3 with 5 min recycle
• Operating Voltage: 24V 50/60 hz
• Operating Current: 250 mA max
• Ambient Temp: -40 deg. F to 176 deg. F
• Spark Transformer: Rajah Terminal
• Housing Color: Black
